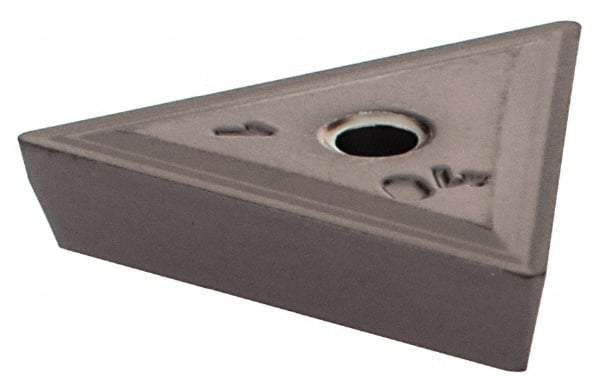

Iscar - TPMR321 Grade IC907 Carbide Turning Insert - 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 09458514
Brand: Iscar
Model #: 5505154
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMR |
| Insert Size | 321 |
| Material | Carbide |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1248 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | IC907 |
| Material Grade | C7/C8 |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | PVD |
| Primary Workpiece Material | S; M; H |
| Included Angle | 60 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
