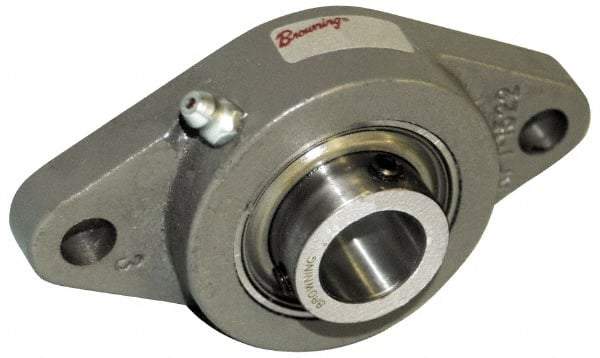

Browning - 3/4" ID, 4-13/32" OAL x 2-1/2" OAH 2-Bolt Flange Air Handling - 1,444 Lb Static Cap, 2,611 Lb Dyn Cap, 3-17/32" Btw Mnt Hole Ctrs, Cast Iron
Item #: 09370768
Brand: Browning
Model #: VF2S-212 AH
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2-Bolt Flange Air Handling |
| Inside Diameter (Inch) | 3/4 |
| Width (Inch) | 1-9/32 |
| Overall Length (Inch) | 4-13/32 |
| Overall Height (Inch) | 2-1/2 |
| Static Load Capacity (Pounds) | 1444.00 |
| Dynamic Load Capacity (Pounds) | 2611 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 3.5310 |
| Distance Between Mounting Hole Centers (Inch) | 3-17/32 |
| Material | Cast Iron |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 3/8 |
