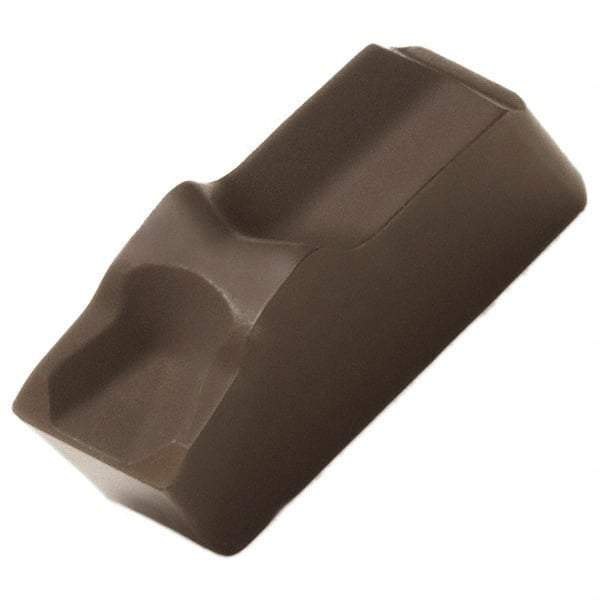

Seco - 150.103 16 T350M Grade, 0.122" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.008" Cnr Rad, TiCN/Al2O3 Coated, Single End
Item #: 09364027
Brand: Seco
Model #: 16964
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 150.10 |
| Insert Size | 3 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Material Grade | C5 |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Series | 150.10 |
| Relief Angle | 0 |
| Chipbreaker | 16 |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.3540 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 3 |
| Width Tolerance | ±0.003 |
