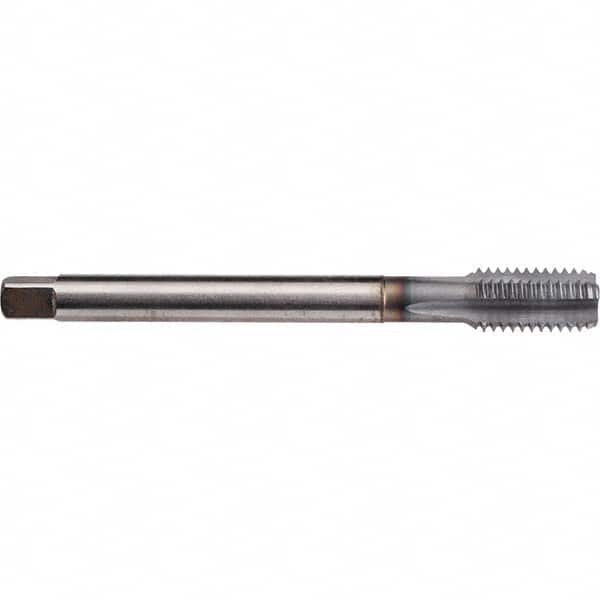

Emuge - M14x1.50 Metric Fine 0 Flute TiCN Finish Powdered Metal Spiral Point Tap
Item #: 96249495
Brand: Emuge
Model #: C196R501.0331
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M14x1.50 |
| Number of Flutes | 0 |
| Chamfer | Bottoming |
| Thread Limit | D6 |
| Finish/Coating | TiCN |
| Material | Powdered Metal |
| Through Coolant | Through Coolant |
| Thread Direction | Right Hand |
| Overall Length (mm) | 100.00 |
| Oversize | No |
| Thread Standard | Metric Fine |
| Series/List | C196R501 |
| Shank Diameter (mm) | 11.00 |
| Square Size (mm) | 9.00 |
