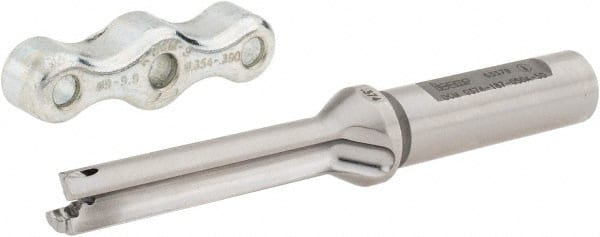

Replaceable Tip Drill: 0.374 to 0.39'' Drill Dia, 1.85″ Max Depth, 0.5'' Weldon Flat Shank Uses IDI-SG & IDI-SK Inserts, 4.14″ OAL, Through Coolant
Item #: 09294521
Brand: Iscar
Model #: 3200651
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.3740 |
| Maximum Drill Diameter (Decimal Inch) | 0.3900 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.8500 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Compatible Insert Style | IDI-SG; IDI-SK |
| Compatible Insert Size Code | 095 |
| Overall Length (Decimal Inch) | 4.1400 |
| Series | CHAMDRILL |
| Toolholder Style | DCM |
| Flute Length (Decimal Inch) | 1.8500 |
| Body Length (Decimal Inch) | 2.3700 |
| Shank Length (Decimal Inch) | 1.7700 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Coolant Through | Yes |
