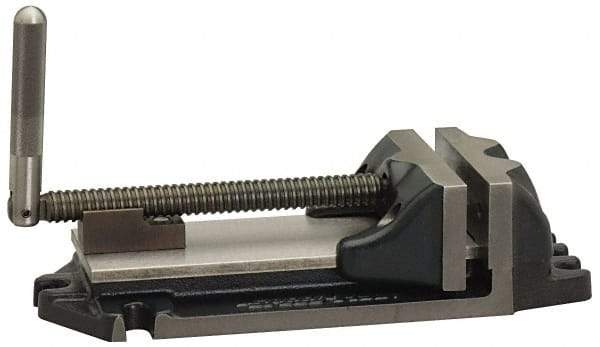

Cardinal Tool - 6" Jaw Opening Capacity x 2" Throat Depth, Horizontal Drill Press Vise - 6" Wide Jaw, Stationary Base, Rapid Action, 15" OAL x 3-11/16" Overall Height, Steel
Item #: 09240060
Brand: Cardinal Tool
Model #: 6-B
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Rapid action spindles have a quick-action mechanism or a split nut design to rapidly open, close or clamp for repetitive operations.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 6 |
| Jaw Opening Capacity (Inch) | 6 |
| Jaw Opening Capacity (Decimal Inch) | 6.0000 |
| Throat Depth (Inch) | 2 |
| Throat Depth (Decimal Inch) | 2.0000 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Rapid Action |
| Overall Length (Inch) | 15 |
| Overall Height (Inch) | 3-11/16 |
| Vise Material | Steel |
| Model Number | 6-B |
