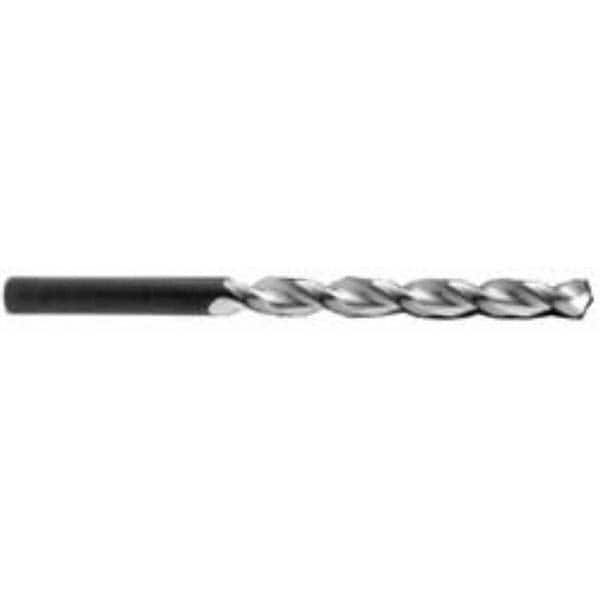

Guhring - 9.5mm 130° 2-Flute High Speed Steel Extra Length Drill Bit
Item #: 85977379
Brand: Guhring
Model #: 9005020095000
Features and Benefits
High speed steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 9.50 |
| Drill Bit Size (Decimal Inch) | 0.3740 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Overall Length (mm) | 250.00 |
| Through Coolant | NonCoolant Through |
| Shank Diameter (Decimal Inch) | 0.3740 |
| Flute Length (mm) | 175.00 |
| Flute Length (Decimal Inch) | 6.8900 |
| Cutting Direction | Right Hand |
| Flute Type | Parabolic |
| Number of Flutes | 2 |
| Point Type | Standard |
| Shank Type | Straight |
| Specification Designation | DIN |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.022 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Series/List | 502 |
