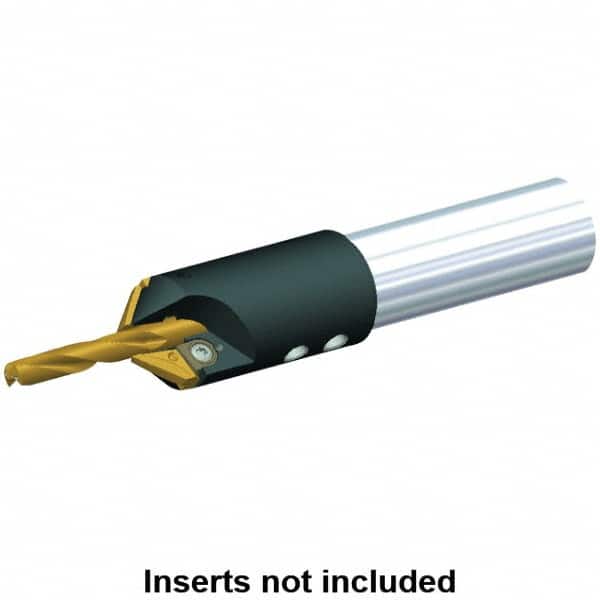

Kennametal - 9/16" to 15.88mm Diam, Straight Shank, 31.75mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 5/8" Drill Shank Diam, 3.42807R001 Insert, 6.44" OAL
Item #: 09201948
Brand: Kennametal
Model #: 1604304
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 15.88 |
| Maximum Drill Diameter (Decimal Inch) | 0.6250 |
| Minimum Drill Diameter (Decimal Inch) | 0.5630 |
| Body Shank Diameter (mm) | 31.75 |
| Body Shank Diameter (Decimal Inch) | 1.2500 |
| Drill Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.42807R001 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 1.6600 |
| Overall Length (Decimal Inch) | 6.4400 |
| Included Angle | 90 |
| Insert Holding Method | Clamp; Screw |
| Shank Length (mm) | 82.55 |
| Shank Length (Decimal Inch) | 3.2500 |
| Maximum Screw Adjustment (Decimal Inch) | 0.7480 |
| Through Coolant | NonThrough Coolant |
| Series | SEFAS |
| Includes | Clamp; Screw; Wrench |
