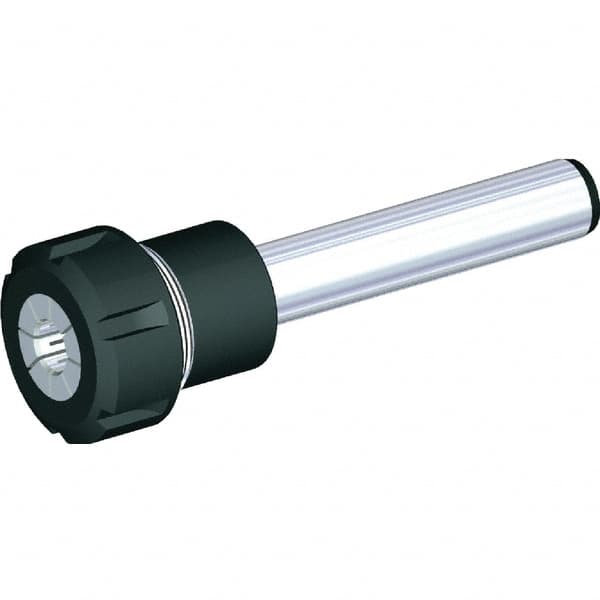

Kennametal - 1.02mm to 20.07mm Capacity, 54mm Projection, Straight Shank, ER32 Collet Chuck - 154mm OAL, 20mm Shank Diam
Item #: 09201468
Brand: Kennametal
Model #: 1288304
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Projection (mm) | 54.00 |
| Projection (Decimal Inch) | 2.1260 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0400 |
| Minimum Collet Capacity (mm) | 1.02 |
| Maximum Collet Capacity (mm) | 20.07 |
| Maximum Collet Capacity (Decimal Inch) | 0.7900 |
| Overall Length (mm) | 154.00 |
| Overall Length (Decimal Inch) | 6.0630 |
| Actuator Type | Wrench |
| Shank Length (mm) | 100.00 |
| Hex Diameter (mm) | 50.00 |
| PSC Code | 5136 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0025 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.9690 |
| Collet Nut Diameter (mm) | 50.01 |
