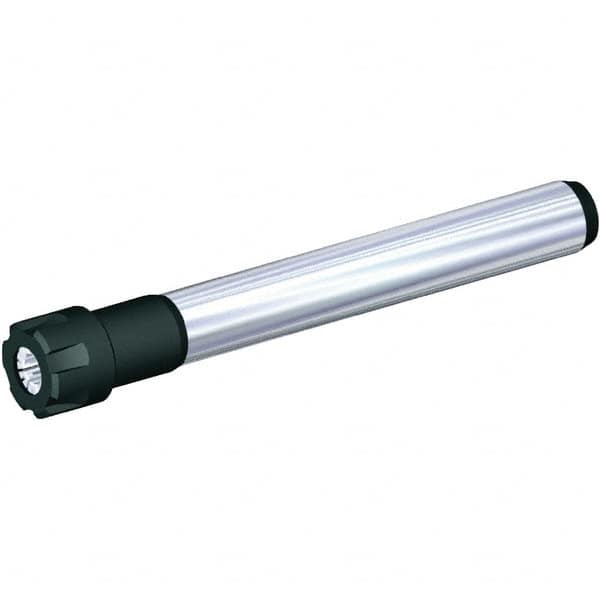

Kennametal - 0.51mm to 7.11mm Capacity, 27mm Projection, Straight Shank, ER11 Collet Chuck - 107mm OAL, 12mm Shank Diam
Item #: 09201435
Brand: Kennametal
Model #: 1288261
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER11 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Projection (mm) | 27.00 |
| Projection (Decimal Inch) | 1.0630 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Minimum Collet Capacity (mm) | 0.51 |
| Maximum Collet Capacity (mm) | 7.11 |
| Maximum Collet Capacity (Decimal Inch) | 0.2800 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2126 |
| Actuator Type | Wrench |
| Shank Length (mm) | 80.00 |
| Hex Diameter (mm) | 16.00 |
| PSC Code | 5136 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0025 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.6300 |
| Collet Nut Diameter (mm) | 16.00 |
