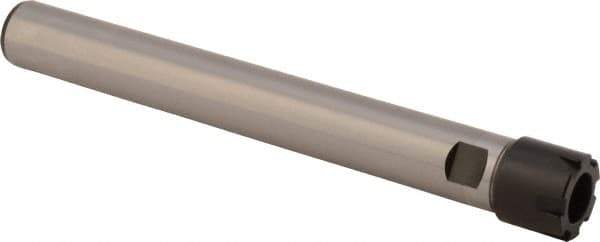

Kennametal - 0.51mm to 10.41mm Capacity, 1.53" Projection, Straight Shank, ER16 Collet Chuck - 177.8mm OAL, 3/4" Shank Diam
Item #: 09201385
Brand: Kennametal
Model #: 1021494
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Projection (Decimal Inch) | 1.5300 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Minimum Collet Capacity (mm) | 0.51 |
| Maximum Collet Capacity (mm) | 10.41 |
| Maximum Collet Capacity (Decimal Inch) | 0.4100 |
| Overall Length (mm) | 177.80 |
| Overall Length (Decimal Inch) | 7.0000 |
| Actuator Type | Wrench |
| Shank Length (Decimal Inch) | 5.4700 |
| Hex Diameter (Decimal Inch) | 0.8700 |
| PSC Code | 5136 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0025 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.8660 |
| Collet Nut Diameter (mm) | 22.00 |
