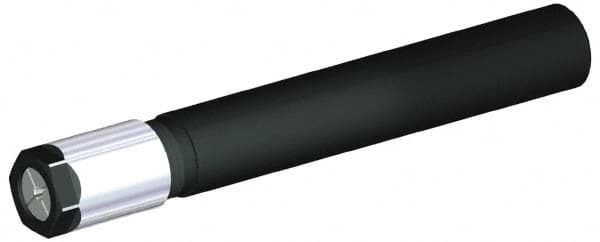

Kennametal - 1/64" to 25/64" Capacity, 43mm Projection, Straight Shank, DA200 Collet Chuck - 117mm OAL, 20mm Shank Diam
Item #: 09201138
Brand: Kennametal
Model #: 1015035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Double Angle |
| Collet Series | DA200 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Projection (mm) | 43.00 |
| Projection (Decimal Inch) | 1.6929 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 1/64 |
| Minimum Collet Capacity (mm) | 0.40 |
| Maximum Collet Capacity (mm) | 9.92 |
| Maximum Collet Capacity (Inch) | 25/64 |
| Maximum Collet Capacity (Decimal Inch) | 0.3906 |
| Overall Length (mm) | 117.00 |
| Overall Length (Decimal Inch) | 4.6063 |
| Actuator Type | Wrench |
| Shank Length (mm) | 74.00 |
| Hex Diameter (mm) | 21.50 |
| PSC Code | 5136 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0025 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.8450 |
| Collet Nut Diameter (mm) | 21.46 |
