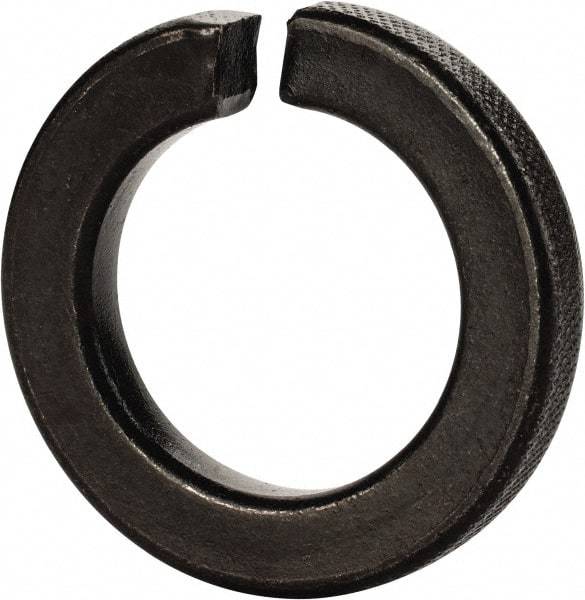

Value Collection - 1-3/8", 1.379" ID, 0.344" Thick Split Lock Washer - Grade 2 Steel, Uncoated, 1.379" Min ID, 1.408" Max ID, 2.219" Max OD
Item #: 09173642
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 1-3/8 |
| Material | Steel |
| Material Grade | Grade 2 |
| Finish/Coating | Uncoated |
| Inside Diameter (Decimal Inch) | 1.3790 |
| Thickness (Decimal Inch) | 0.3440 |
| Minimum Inside Diameter (Decimal Inch) | 1.3790 |
| Maximum Inside Diameter (Decimal Inch) | 1.4080 |
| Maximum Outside Diameter (Decimal Inch) | 2.2190 |
| Military Specification | Does Not Meet Military Specifications |
| Maximum Thickness (Decimal Inch) | 0.3440 |
