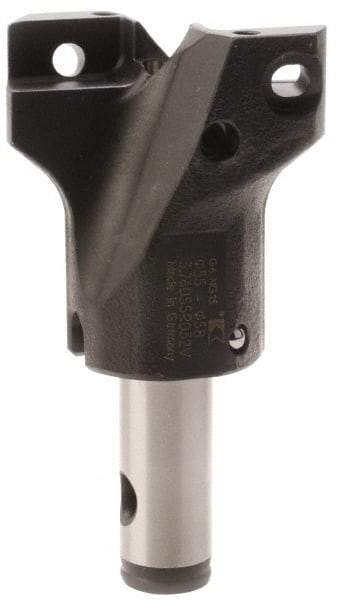

Kennametal - Series HTS DFT, Head Connection 60, 220mm Max Diam Pilot Drill Head - B510S30000 Pilot Drill, 30mm Pilot Drill Diam, 4 Nonpilot Inserts, 125mm Head Length
Item #: 09094483
Brand: Kennametal
Model #: 1582742
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HTS DFT |
| Head Connection Size | 60 |
| Pilot Type | Pilot Drill |
| Maximum Drill Diameter (mm) | 220.00 |
| Maximum Drill Diameter (Decimal Inch) | 8.6614 |
| Pilot Drill Diameter (mm) | 30.00 |
| Pilot Drill Diameter (Decimal Inch) | 1.1811 |
| Number of Non-Pilot Inserts | 4 |
| Pilot Drill Style | B510S30000 |
| Head Length (mm) | 125.00 |
| Head Length (Decimal Inch) | 4.9213 |
| Drill Head Style | 3.76 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Cartridge |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Back of Head Diameter (mm) | 125.00 |
| Back of Head Diameter (Decimal Inch) | 4.9213 |
| Includes | Adjusting Screw; Clamping screw |
