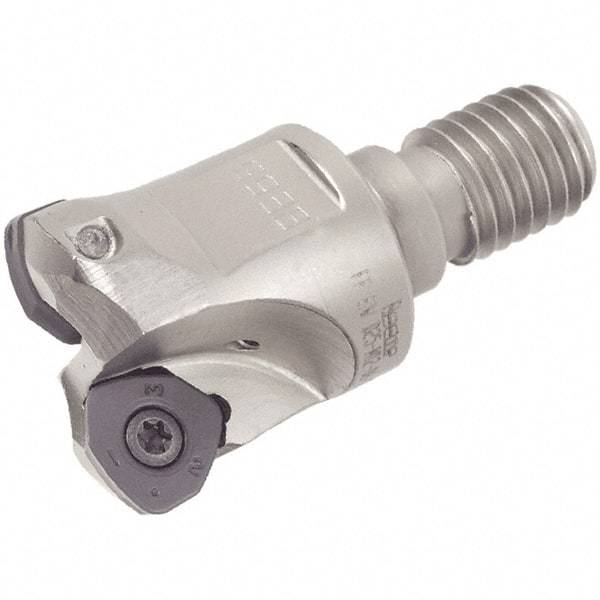

Iscar - 25mm Cut Diam, 0.059" Max Depth, M12 Modular Connection Indexable High-Feed End Mill - Screw Holding Method, FF WOMT/WOCT, FF WOMW Insert, FF EW-M Toolholder, Through Coolant
Item #: 09067125
Brand: Iscar
Model #: 3103444
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Shank Type | Modular Connection |
| Modular Connection Size | M12 |
| Number of Cutter Inserts | 2 |
| Insert Style | FF WOMT/WOCT; FF WOMW |
| Toolholder Style | FF EW-M |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 0.4330 |
| Through Coolant | Through Coolant |
| Maximum Cutting Diameter (Decimal Inch) | 0.9840 |
| Overall Length (Decimal Inch) | 1.8500 |
