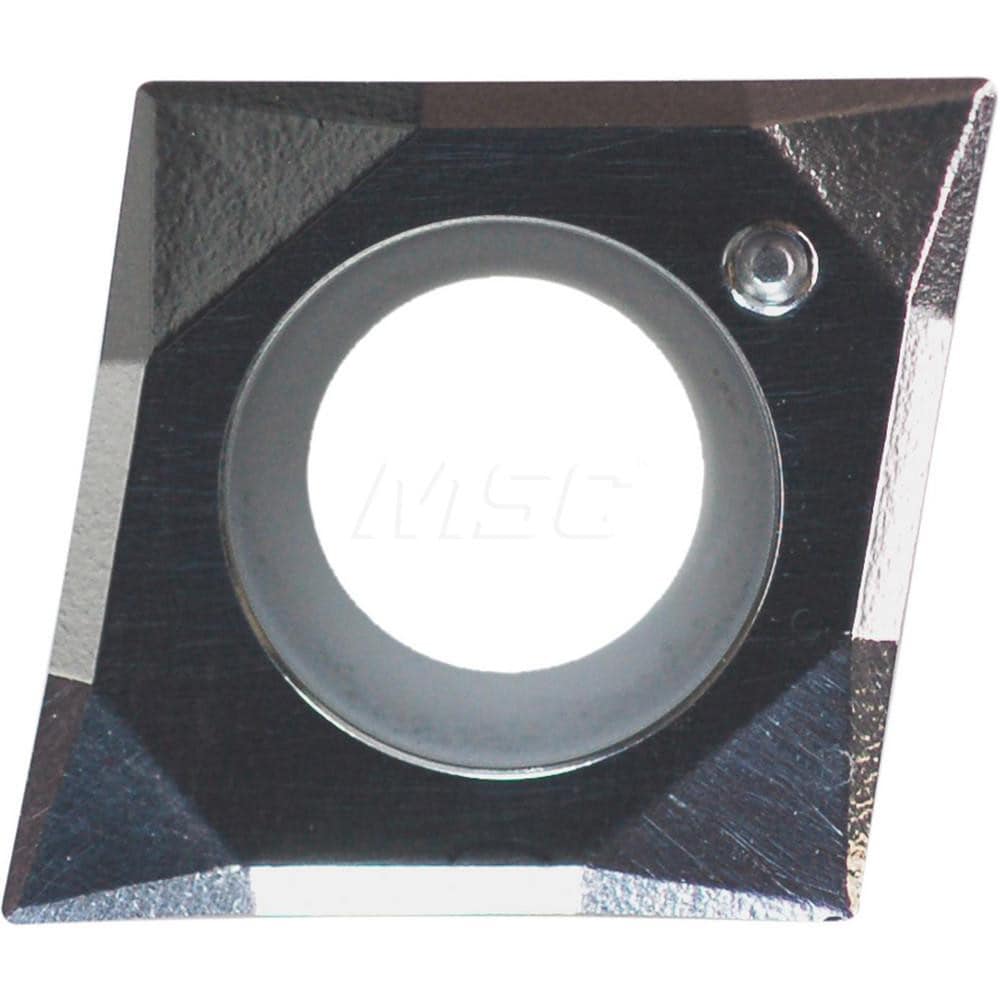

Boring Insert: CCGT21505 WHW16, Solid Carbide
Item #: 20999215
Brand: WOHLHAUPTER
Model #: 097529WHW16
Product Specifications
| Insert Style | CCGT |
| Insert Size Code | 21505 |
| Insert Material | Solid Carbide |
| Thickness (Inch) | 3/32 |
| Manufacturer Grade | WHW16 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0080 |
| Relief Angle | 7 |
| Rake | Positive |
| Series | F101 |
| Insert Shape | Parallelogram |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23242105 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0937 |
