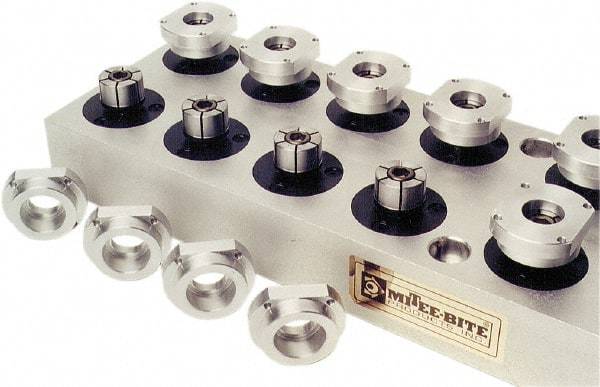

Mitee-Bite - 1.15 to 3.06" Expansion Diam, 10,000 Lb Holding Force, M6 Mounting Screw, M16 Center Screw, Steel ID Expansion Clamps - 4.232" Flange Diam, 0.31" Flange Thickness, 3.646" Mount Hole Diam, 3 Mount Holes, 1.79" Overall Height, 224 Ft/Lb Torque
Item #: 08860397
Brand: Mitee-Bite
Model #: 38400
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Flange Diameter (Decimal Inch) | 4.2320 |
| Maximum Expansion Diameter (Decimal Inch) | 3.0600 |
| Minimum Expansion Diameter (Decimal Inch) | 1.1500 |
| Holding Force (Lb.) | 10000.00 |
| Center Screw Thread Size | M16 |
| Mounting Screw Thread Size | M6 |
| Material | Steel |
| Mount Hole Diameter (Decimal Inch) | 3.6460 |
| Flange Thickness (Decimal Inch) | 0.3100 |
| Expansion Height (Decimal Inch) | 1.2700 |
| Height Above Flange (Decimal Inch) | 1.4800 |
| Overall Height (Decimal Inch) | 1.7900 |
| Number of Mount Holes | 3 |
| Thread Length Below Base (Decimal Inch) | 0.7900 |
| Torque (Ft/Lb) | 224.00 |
