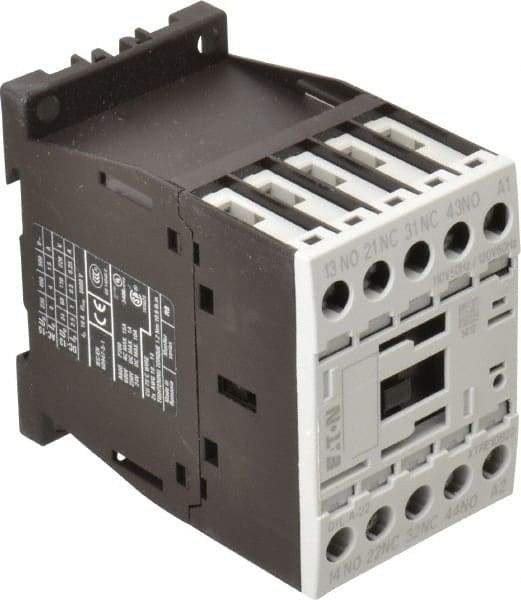

Eaton Cutler-Hammer - 4 Pole, 2NC/2NO, 110/120 VAC Control Relay - 10 Amps, 220 VAC to 500 VAC
Item #: 08805533
Brand: Eaton Cutler-Hammer
Model #: XTRE10B22A
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Coil Voltage | 110/120 VAC |
| Contact Configuration | 2NC/2NO |
| Number of Poles | 4 |
| Mounting Type | DIN Rail Mount; Panel Mount |
| Terminal Type | Screw |
| Maximum Sensed Amperage | 10 |
| Minimum Sensed Voltage | 220 VAC |
| Maximum Sensed Voltage | 500 VAC |
| Maximum Sensed Frequency | 60 |
| Minimum Sensed Frequency | 50 |
| Ingress Protection Rating | IP20 |
| Maximum Operating Temperature (F) | 122 |
| Minimum Operating Temperature (F) | -13 |
| Overall Height (mm) | 68 |
| Overall Height (Decimal Inch) | 2.6800 |
| Overall Width (mm) | 45 |
| Overall Width (Decimal Inch) | 1.7700 |
| Overall Depth (mm) | 75 |
| Overall Depth (Decimal Inch) | 2.9500 |
| Standards Met | CE; CSA; EN/IEC 60947; UL Listed |
