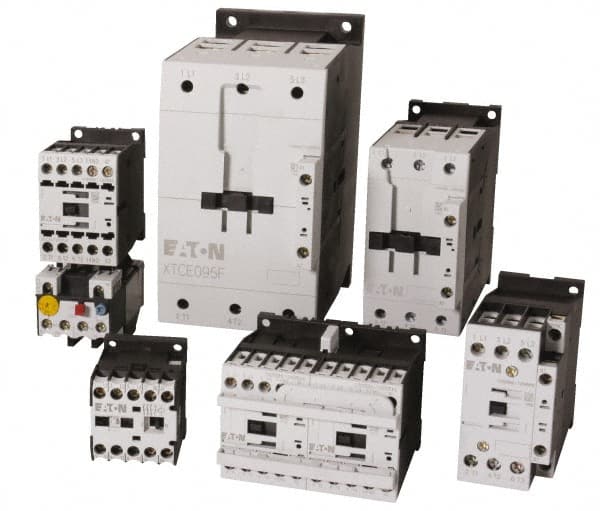

Eaton Cutler-Hammer - 3 Pole, 415 Coil VAC at 50 Hz and 480 Coil VAC at 60 Hz, 20 Amp, Nonreversible Open Enclosure IEC Contactor
Item #: 08804643
Brand: Eaton Cutler-Hammer
Model #: XTCE009B10C
Product Specifications
| Number of Poles | 3 |
| Coil Voltage | 415 VAC @ 50 Hz; 480 VAC @ 60 Hz |
| Amperage | 20 |
| Action | NonReversible |
| Horsepower at 1 Phase | 0.5 @ 115 V; 1 @ 200 V; 1.5 @ 230 V |
| Horsepower at 3 Phase | 3 @ 200 V; 3 @ 230 V; 5 @ 460 V; 7.5 @ 575 V |
| Auxiliary Contacts | NO |
| Enclosure Type | Open |
| Overall Height (mm) | 68 |
| Overall Height (Decimal Inch) | 2.6800 |
| Overall Width (mm) | 45 |
| Overall Width (Decimal Inch) | 1.7700 |
| Overall Depth (mm) | 117 |
| Overall Depth (Decimal Inch) | 4.6100 |
| Inductive Load Rating (A) | 9 |
| Resistive Load Rating (A) | 22 |
| Standards Met | ATEX; CCC; CE Marked; CSA; EN/IEC 60947; RoHS Compliant; UL |
