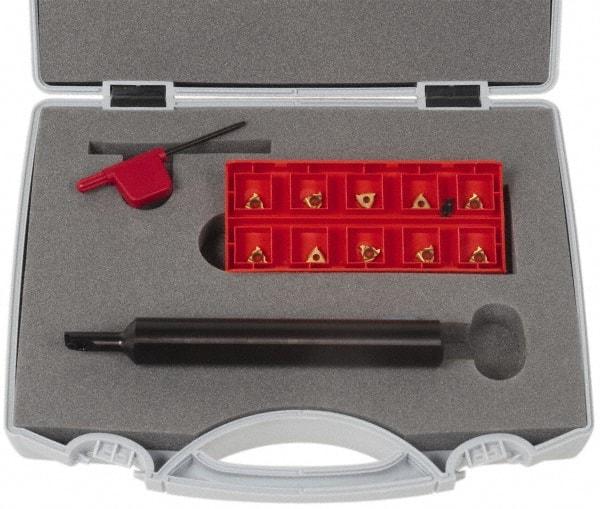

Carmex - Right Hand Cut, 5/8" Shank Width x 5/8" Shank Height Indexable Threading Toolholder - 5" OAL, 08 IR A60 Insert Compatibility, KM Toolholder
Item #: 08716102
Brand: Carmex
Model #: KM60I-KIT
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Height (Inch) | 5/8 |
| Overall Length (Inch) | 5 |
| Insert Compatibility | 08 IR A60 |
| Toolholder Style | KM |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3070 |
| Center to Cutting Edge (Decimal Inch) | 0.2100 |
| Neck Diameter (Decimal Inch) | 0.2650 |
| Maximum Bore Depth (Decimal Inch) | 0.7000 |
| Minimum Bore Diameter (Decimal Inch) | 0.3100 |
| Insert Inscribed Circle (Inch) | 3/16 |
