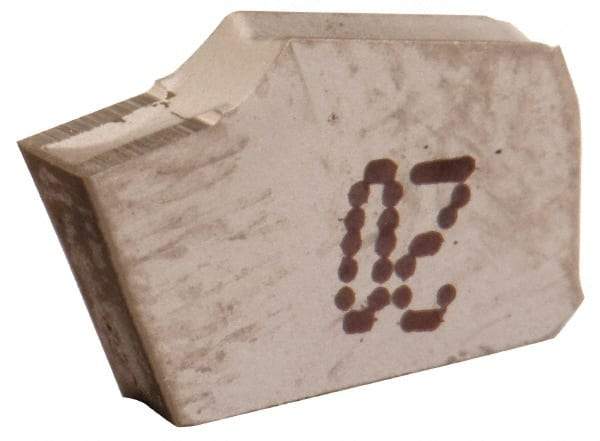

Iscar - GTL4 IC20 Grade, 0.1614" Cutting Width, Carbide Cutoff Insert - 8° Left Hand Lead Angle, 0.0094" Cnr Rad, Single End
Item #: 08690356
Brand: Iscar
Model #: 6000728
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GTL |
| Insert Size | 4 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 8 |
| Cutting Width (mm) | 4.10 |
| Cutting Width (Decimal Inch) | 0.1614 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Series | Self-Grip |
| Relief Angle | 7 |
| Corner Radius (Decimal Inch) | 0.0094 |
| Corner Radius (mm) | 0.24 |
| Insert Holding Method | Clamp |
