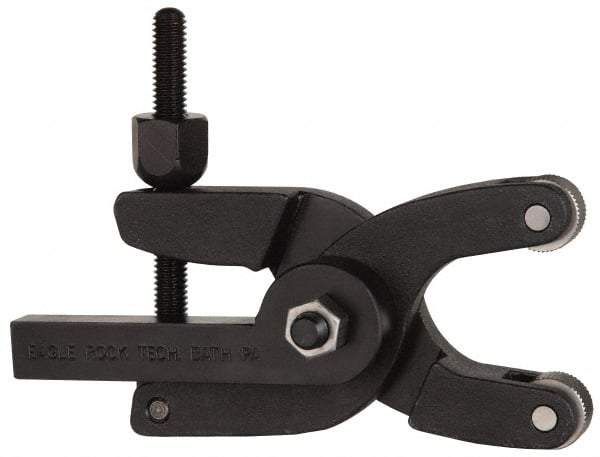

Knurlcraft - 6 Inch Overall Length x 1.3 Inch Overall Width, 2-1/8 Inch Capacity, Scissor and Straddle Type Knurler - 3/4 Inch Diameter, 3 Inch Shank Length x 5/8 Inch Shank Width x 5/8 Inch Shank Height, Square Shank, E Series
Item #: 08657017
Brand: Knurlcraft
Model #: K1-201-210625ME
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Capacity (Decimal Inch) | 2.1250 |
| Maximum Capacity (Inch) | 2-1/8 |
| Minimum Capacity (Decimal Inch) | 0.0000 |
| Minimum Capacity (Inch) | 0 |
| Cutting Direction | Neutral |
| Knurl Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Length (Decimal Inch) | 3.00 |
| Knurl Face Width (Inch) | 3/8 |
| Knurl Hole Diameter (Inch) | 1/4 |
| Number of Knurls Required | 2 |
| Knurl Series | E |
| Includes Knurl Wheels | Yes |
| Knurl Patterns Included | Diamond; Left-Hand Diagonal; Right-Hand Diagonal |
| Shank Shape | Square |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Width (Decimal Inch) | 1.3000 |
| Head Length (Decimal Inch) | 5.0000 |
| Head Width (Inch) | 3/4 |
| Shank Height (Inch) | 5/8 |
