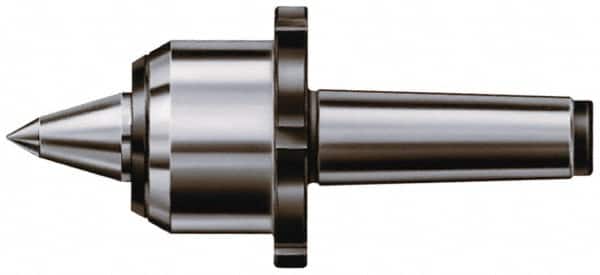

Rohm - MT4 Taper Shank, 2.66" Head Diam Live Center - 7,000 Max RPM, 2.86" Head Length, 1.26" Point Diam, 1.732" Point Len, 2,200 Lb Max Workpc, 8.9" OAL, Long Point
Item #: 08623696
Brand: Rohm
Model #: 304521
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 2200.00 |
| Maximum Workpiece Weight (kg) | 1000.00 |
| Point Style | Long |
| Point Diameter (Decimal Inch) | 1.2600 |
| Point Length (mm) | 44.00 |
| Point Length (Decimal Inch) | 1.7320 |
| Accuracy (mm) | 0.0050 |
| Head Diameter (Decimal Inch) | 2.6600 |
| Head Length (Decimal Inch) | 2.8600 |
| Overall Length (Decimal Inch) | 8.9000 |
| Gage Line Diameter (mm) | 31.27 |
| Point to Gauge Line (mm) | 122.00 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 7000 |
| Material | Tool Steel |
| Carbide-Tipped | No |
