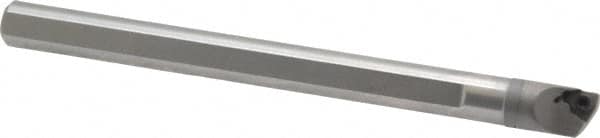

Kennametal - 0.347" Min Bore Diam, 4" OAL, 5/16" Shank Diam, GSBIW Indexable Boring Bar - 1.248" Max Bore Depth, WP.. Insert, Screw Holding Method
Item #: 08614786
Brand: Kennametal
Model #: 1950376
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GSBIW |
| Series | G |
| Minimum Bore Diameter (Decimal Inch) | 0.3470 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.2480 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Insert Compatibility | WP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.1740 |
| Insert Thickness (Decimal Inch) | 0.0620 |
| Insert Inscribed Circle (Decimal Inch) | 0.1870 |
| Rake Angle | 0 |
| Coolant Hole Diameter (Decimal Inch) | 0.0400 |
| Complete Insert Compatibility | WPGT 602 CG5; WPGT 602 CM1; WPGT 605 CG5; WPGT 605 CM1; WPGT 61 CG5; WPGT 61 CM1; WPMT 61 GP-ALO9; WPMT 61 GP-CG55 |
| Toolholder Material | Steel |
