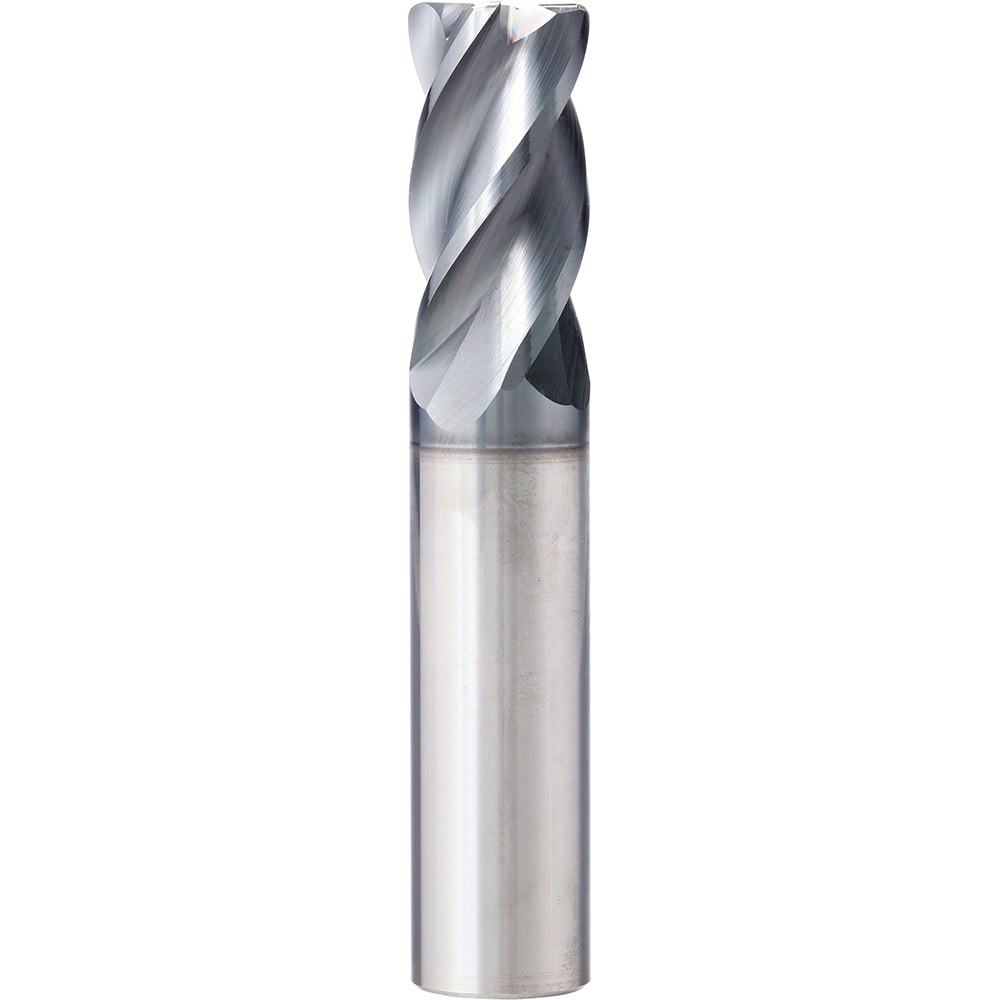

Square End Mill: 1/4" Dia, 1/2" LOC, 4 Flute, Solid Carbide
Item #: 33892704
Brand: Supermill
Model #: XPV250S
Product Specifications
| Mill Diameter (Fractional Inch) | 1/4 |
| Flute Type | Spiral |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1/2 |
| Coating/Finish | AlCrN |
| Centercutting | Yes |
| End Type | Single |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Shank Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | Yes |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Series | XPV |
| Shank Diameter Tolerance | h6 |
| Mill Diameter Tolerance | +0.000 to -0.002 in |
| Overall Length Tolerance | +0.050/-0.000 in |
| UNSPSC Code | 27112803 |
