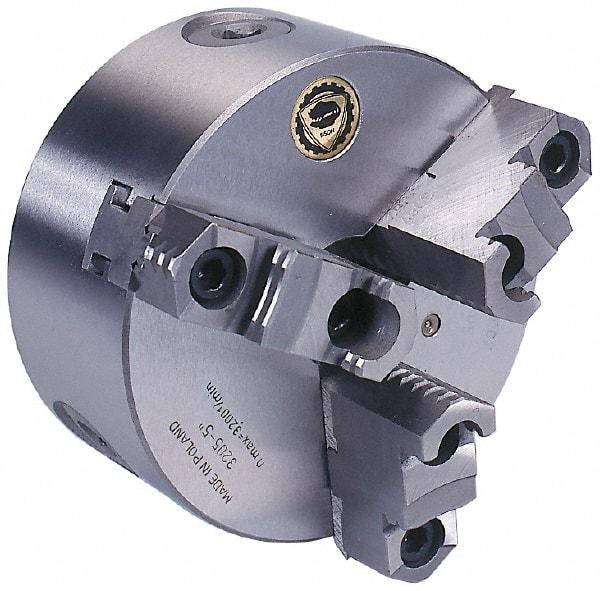

Bison - 3 Jaws, 5" Diam, Self Centering Manual Lathe Chuck - 1-10" Spindle Mount, Reversible, 3,200 Max RPM, 1.2598" Through Hole Diam, 0.0008" Axial Runout, 0.0012" Radial Runout, Cast Iron
Item #: 08606055
Brand: Bison
Model #: 7-805-0551
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 5 |
| Number of Jaws | 3 |
| Mount | Threaded |
| Thread Size | 1-10 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Inch) | 5 |
| Adjustable | No |
| Axial Runout (Decimal Inch) | 0.0008 |
| Radial Runout (Decimal Inch) | 0.0012 |
| Body Length (Decimal Inch) | 3.7400 |
| Maximum RPM | 3200 |
| Includes | Two-Piece Hard Reversible Jaws |
