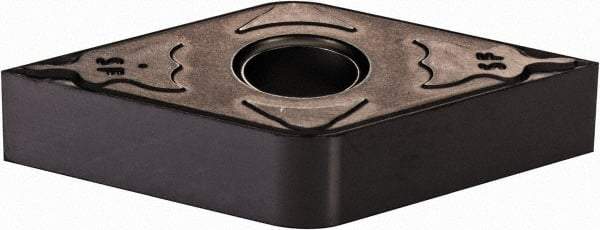

Iscar - DNGG430 SF Grade IC907 Carbide Turning Insert - TiN/TiAlN Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 0.004" Corner Radius
Item #: 08555005
Brand: Iscar
Model #: 5505460
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNGG |
| Insert Size | 430 |
| Material | Carbide |
| Length (mm) | 15.49 |
| Length (Decimal Inch) | 0.6100 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | IC907 |
| Coating | TiN/TiAlN |
| Material Grade | Submicron |
| Chip Breaker | SF |
| ISO Number | DNGG 430-SF |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | DNGG 430-SF |
| Included Angle | 55 |
| Series | Isoturn |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Boring |
| MultiUseTool | Yes |
| Shape | Diamond |
