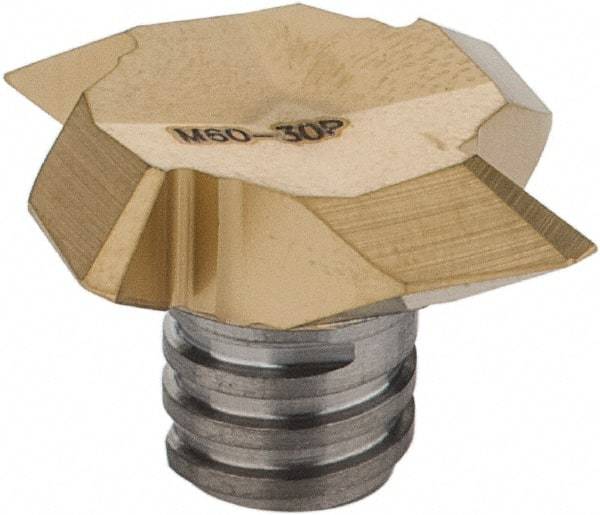

Iscar - MM TRD-M Grade IC528 Carbide End Milling Tip Insert - TiCN/TiN Finish, 4 Flutes, 0.854" Cutting Diam, 0.008" Cnr Rad
Item #: 08511917
Brand: Iscar
Model #: 6492315
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM TRD-M |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.8540 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC528 |
| Number of Flutes | 4 |
| Coating | TiCN/TiN |
| Milling Tip Full Description | End Mill |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Thread Size | T08 |
| Pitch (mm) | 3.00 |
| Threads Per Inch | 8 |
| Manufacturers Catalog Number | MM TRD22-M60-30P-4T08 |
