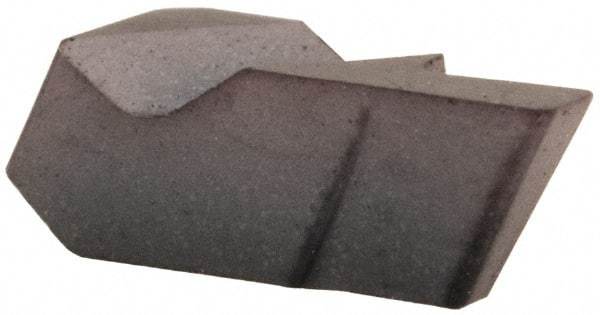

Kennametal - 1047NG Grade KC5025, 1.19mm Cutting Width Carbide Grooving Insert - 1.91mm Max Depth of Cut, Left Hand, 0.19mm Corner Radius, TiAlN Finish
Item #: 08446130
Brand: Kennametal
Model #: 1817699
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 1047 |
| Material | Carbide |
| Cutting Width (mm) | 1.19 |
| Cutting Width (Decimal Inch) | 0.0469 |
| Maximum Depth of Cut (mm) | 1.91 |
| Maximum Depth of Cut (Decimal Inch) | 0.0752 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KC5025 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Lead Angle | 3 |
| Insert Seat Size | 1 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | PVD |
| Series | Top Notch |
| Rake | Neutral |
| Included Angle | 64 |
