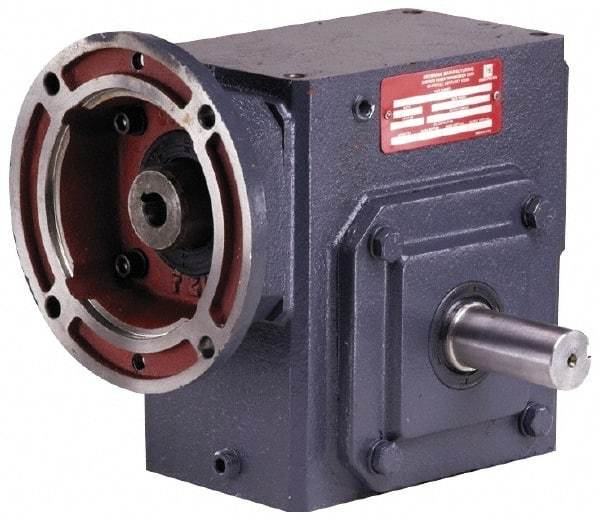

Morse - 3 Centerline Distance, 10:1, 175 RPM Output, 2 Input Horsepower, 664 Lbs. Max Torque, Speed Reducer - 1-1/4" Shaft Diam, Single Shaft Right, 7/8" Bore, 8-1/2" Long x 5-1/2" Wide x 8.88" High, 140TC NEMA, 332 In/Lb. Min Torque
Item #: 08435471
Brand: Morse
Model #: 300Q140R10
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.000 |
| Ratio | 10:1 |
| NEMA Size | 140TC |
| Shaft Style | Single Shaft Right |
| Bore Size (Decimal Inch) | 0.875 |
| Shaft Diameter (Decimal Inch) | 1.2500 |
| Height (Inch) | 8.88 |
| Length (Decimal Inch) | 8.500 |
| Width (Decimal Inch) | 5.5000 |
| Minimum Torque (In/Lb) | 332.0 |
| Maximum Torque Inch/Lbs (Pounds) | 664.00 |
| Minimum Input Horsepower | 1.00 |
| Maximum Input Horsepower | 2.00 |
| Output RPM at 1750 Input | 175.0 |
