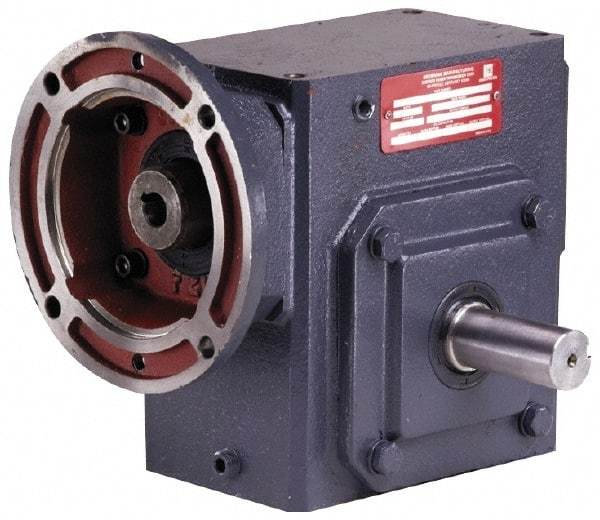

Morse - 2.38 Centerline Distance, 30:1, 58 RPM Output, 2 Input Horsepower, 1,072 Lbs. Max Torque, Speed Reducer - 1-1/8" Shaft Diam, Single Shaft Left, 7/8" Bore, 6.13" Long x 4.08" Wide x 6.94" High, 140TC NEMA, 850 In/Lb. Min Torque
Item #: 08434508
Brand: Morse
Model #: 237Q140L30
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.380 |
| Ratio | 30:1 |
| NEMA Size | 140TC |
| Shaft Style | Single Shaft Left |
| Bore Size (Decimal Inch) | 0.875 |
| Shaft Diameter (Decimal Inch) | 1.1250 |
| Height (Inch) | 6.940 |
| Length (Decimal Inch) | 6.130 |
| Width (Decimal Inch) | 4.0800 |
| Minimum Torque (In/Lb) | 850.0 |
| Maximum Torque Inch/Lbs (Pounds) | 1072.00 |
| Minimum Input Horsepower | 1.00 |
| Maximum Input Horsepower | 2.00 |
| Output RPM at 1750 Input | 58.0 |
