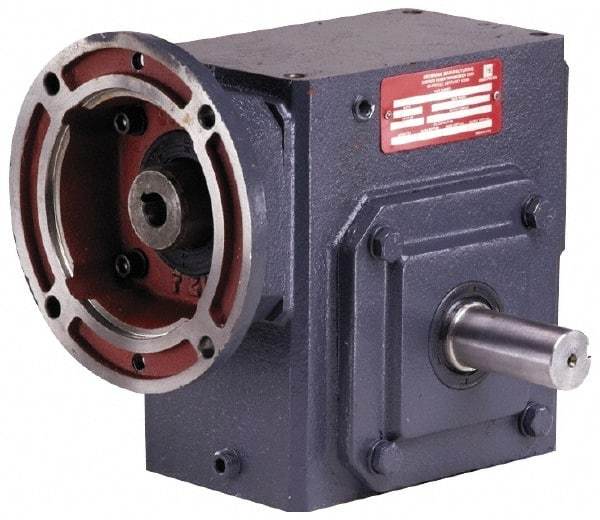

Morse - 1.54 Centerline Distance, 5:1, 350 RPM Output, 3/4 Input Horsepower, 125 Lbs. Max Torque, Speed Reducer - 3/4" Shaft Diam, Single Shaft Right, 5/8" Bore, 5.13" Long x 3.69" Wide x 5.38" High, 56C NEMA, 41 In/Lb. Min Torque
Item #: 08433112
Brand: Morse
Model #: 154Q56R5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.540 |
| Ratio | 5:1 |
| NEMA Size | 56C |
| Shaft Style | Single Shaft Right |
| Bore Size (Decimal Inch) | 0.625 |
| Shaft Diameter (Decimal Inch) | 0.7500 |
| Height (Inch) | 5.380 |
| Length (Decimal Inch) | 5.130 |
| Width (Decimal Inch) | 3.6900 |
| Minimum Torque (In/Lb) | 41.0 |
| Maximum Torque Inch/Lbs (Pounds) | 125.00 |
| Minimum Input Horsepower | 0.25 |
| Maximum Input Horsepower | 0.75 |
| Output RPM at 1750 Input | 350.0 |
