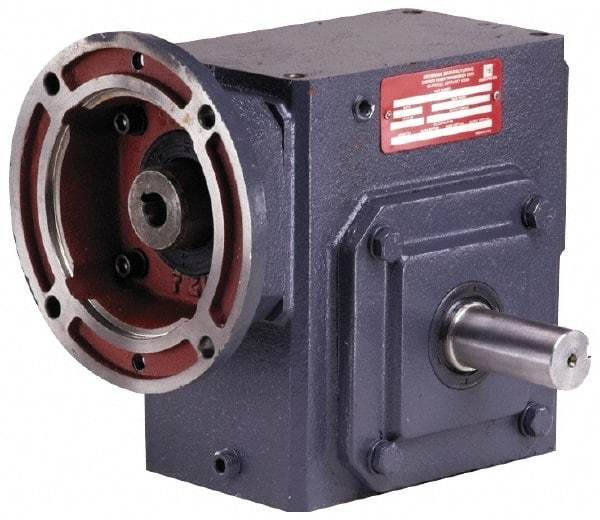

Morse - 1.333 Centerline Distance, 25:1, 70 RPM Output, 3/4 Input Horsepower, 234 Lbs. Max Torque, Speed Reducer - 5/8" Shaft Diam, Single Shaft Left, 5/8" Bore, 4" Long x 2.88" Wide x 4.66" High, 56C NEMA, 172 In/Lb. Min Torque
Item #: 08432783
Brand: Morse
Model #: 133Q56L25
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.333 |
| Ratio | 25:1 |
| NEMA Size | 56C |
| Shaft Style | Single Shaft Left |
| Bore Size (Decimal Inch) | 0.625 |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Height (Inch) | 4.660 |
| Length (Decimal Inch) | 4.000 |
| Width (Decimal Inch) | 2.8800 |
| Minimum Torque (In/Lb) | 172.0 |
| Maximum Torque Inch/Lbs (Pounds) | 234.00 |
| Minimum Input Horsepower | 0.25 |
| Maximum Input Horsepower | 0.75 |
| Output RPM at 1750 Input | 70.0 |
