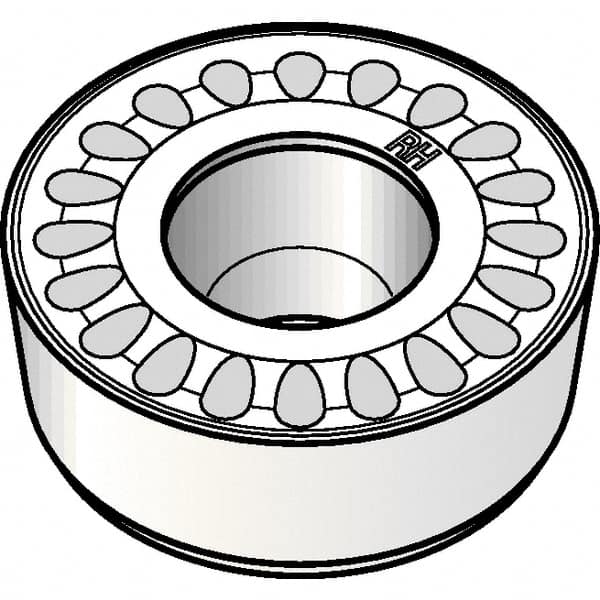

Kennametal - RCMT2006M0 RH Grade KCP25 Carbide Turning Insert - TiCN/Al2O3 Finish, Round, 20mm Inscr Circle, 1/4" Thick
Item #: 08341562
Brand: Kennametal
Model #: 3755755
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 2006M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 20.00 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | KCP25 |
| Coating | TiCN/Al2O3 |
| Material Grade | C2/C3/C6/C7 |
| Chip Breaker | RH |
| Hole Diameter (mm) | 6.50 |
| Hole Diameter (Decimal Inch) | 0.2559 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Round |
