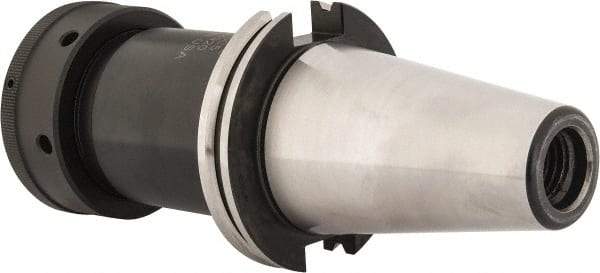

Parlec - 31/64" to 1-1/2" Capacity, 5-1/2" Projection, CAT50 Taper Shank, TG/PG 150 Collet Chuck - 9.5" OAL
Item #: 08144305
Brand: Parlec
Model #: C50-15SC5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Single Angle |
| Collet Series | TG/PG 150 |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Projection (Decimal Inch) | 5.5000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 31/64 |
| Minimum Collet Capacity (Decimal Inch) | 0.4844 |
| Minimum Collet Capacity (mm) | 12.30 |
| Maximum Collet Capacity (mm) | 38.10 |
| Maximum Collet Capacity (Inch) | 1-1/2 |
| Maximum Collet Capacity (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 9.5000 |
| Nose Diameter (Decimal Inch) | 3.4300 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
