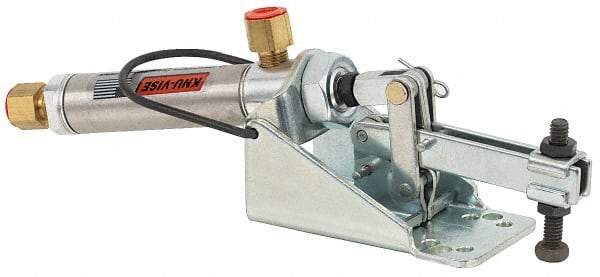

Lapeer - 200 Lb Inner Hold Capacity, Horiz Mount, Air Power Hold-Down Toggle Clamp - 1/8 NPTF Port, 110° Bar Opening, 1-1/4" Height Under Bar
Item #: 08106528
Brand: Lapeer
Model #: AO-200
Exact Tooling IR#: 04
Features and Benefits
Horizontal mounts indicate that the cylinder is mounted parallel to the clamping bar's closed position.
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Mounting Orientation | Horizontal |
| Holding Capacity - Inner (Lb.) | 200 |
| Holding Capacity - Inner (kg) | 90 |
| Height Under Bar (mm) | 31.75 |
| Height Under Bar (Inch) | 1-1/4 |
| Port Size | 1/8 NPTF |
| Bar Opening (Degrees) | 110.00 |
| Length Distance Between Mount Holes (mm) | 34.93 |
| Length Distance Between Mount Holes (Inch) | 1-3/8 |
| Width Distance Between Mount Holes (mm) | 19.05 |
| Width Distance Between Mount Holes (Inch) | 3/4 |
| Bar Extension (Inch) | 2-5/8 |
| Bar Extension (mm) | 66.68 |
| Overall Closed Length (mm) | 246.00 |
| Overall Closed Length (Inch) | 9-11/16 |
| Overall Open Height (Inch) | 3 |
| Overall Closed Height (mm) | 76.20 |
| Overall Closed Height (Decimal Inch) | 3.00 |
| Air Requirement (psi) | 80 to 85 |
| Mounting Hole Size (mm) | 6.76 |
| Mounting Hole Size (Decimal Inch) | 0.2660 |
| Bar Style | U-Bar |
| Bar End Type | Open |
| Includes | Spindle Assembly |
