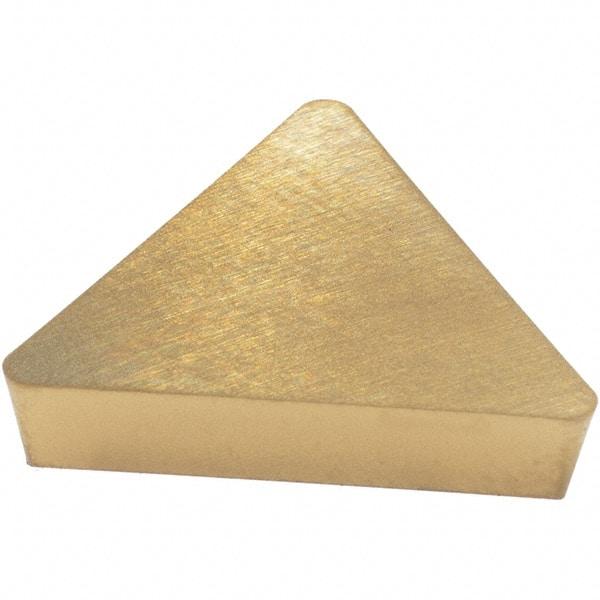

Kennametal - TPU322 Grade KC730 Carbide Turning Insert - TiN Finish, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 08093700
Brand: Kennametal
Model #: 1162668
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPU |
| Insert Size | 322 |
| Material | Carbide |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | KC730 |
| Coating | TiN |
| Material Grade | C2/C3/C4 |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | KENDEX |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
