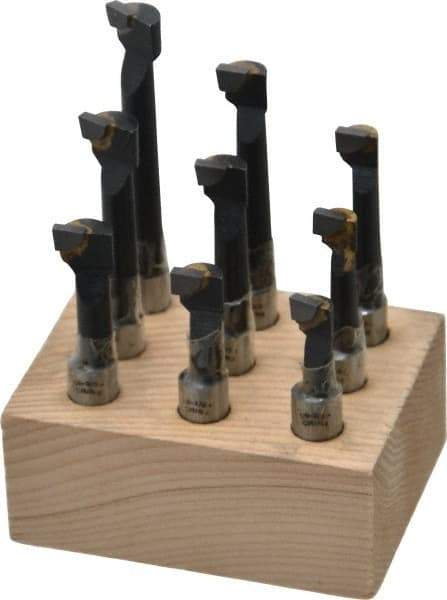

Interstate - 5/16 to 7/16" Min Diam, 3/4 to 2-1/4" Max Depth, 3/8" Shank Diam, 2 to 3-15/16" OAL Boring Bar Set - C6 Carbide Tipped, Bright Finish, Right Hand Cut, 9 Piece Set
Item #: 08057507
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Carbide-tips cut faster than high speed steel. It is commonly used on ferrous and non-ferrous materials including cast iron, steel and steel alloys.
| Product Specifications | |
|---|---|
| Shank Diameter (Inch) | 3/8 |
| Minimum Bore Diameter - Smallest Bar (Decimal Inch) | 0.31 |
| Minimum Bore Diameter - Smallest Bar (Inch) | 5/16 |
| Minimum Bore Diameter - Largest Bar (Decimal Inch) | 0.44 |
| Minimum Bore Diameter - Largest Bar (Inch) | 7/16 |
| Maximum Bore Depth - Smallest Bar (Inch) | 3/4 |
| Maximum Bore Depth - Largest Bar (Inch) | 2-1/4 |
| Minimum Overall Length (Inch) | 2 |
| Maximum Overall Length (Inch) | 3-15/16 |
| Material | Carbide-Tipped |
| Material Grade | C6 |
| Number of Pieces | 9 |
| Overall Length (Inch) | 2; 2-3/16; 2-3/8; 2-21/32; 2-3/4; 3-1/8; 3-1/2; 3-15/16 |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Stand Material | Wood |
