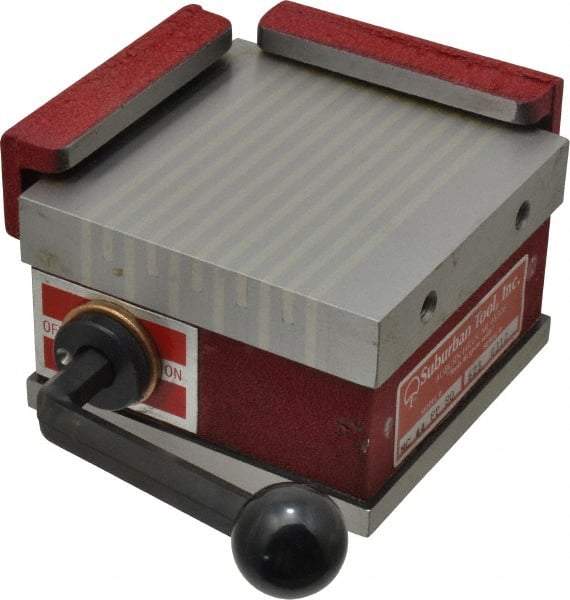

Suburban Tool - Fine Pole Square Permanent Magnetic Block Chuck - 4" Long x 4" Wide x 2-5/8" High, Ceramic
Item #: 08020406
Brand: Suburban Tool
Model #: MC44FPS0
Exact Tooling IR#: 04
Features and Benefits
Square magnetic chucks are designed with individual square magnets that are arranged in grid pattern. They are used for a maximum hold during general purpose applications.
Fine poles are used for holding small or thin parts in light-duty applications. The magnetic poles are closer together than those of standard poles.
| Product Specifications | |
|---|---|
| Shape | Square |
| Magnet Pole Type | Fine Pole |
| Width/Diameter (Inch) | 4 |
| Length (Inch) | 4 |
| Sine Plate Compatibility | S0 |
| Application | Squaring |
| Height (Inch) | 2-5/8 |
| Magnet Material Type | Ceramic |
| Pole Alignment | Longitudinal |
| Parallelism (Decimal Inch) | 0.0002 |
| Squareness (Decimal Inch) | 0.0002 |
| Chuck Style | Block |
| Pole Width (Inch) | 1/8 |
| Includes | Back Rail; Removable Handle; Side Rail |
