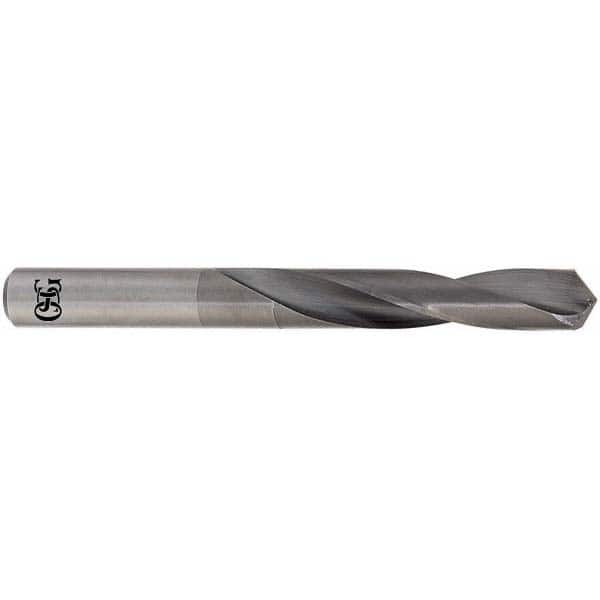

OSG - 9.1mm 135° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 55470256
Brand: OSG
Model #: 215-3583
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3583 |
| Drill Bit Size (mm) | 9.10 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 44.00 |
| Overall Length (mm) | 78.00 |
| Point Type | Standard |
| Shank Diameter (mm) | 9.10 |
| Spiral Type | Slow Spiral |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Tip Finish/Coating | None |
| Series/List | 215 |
