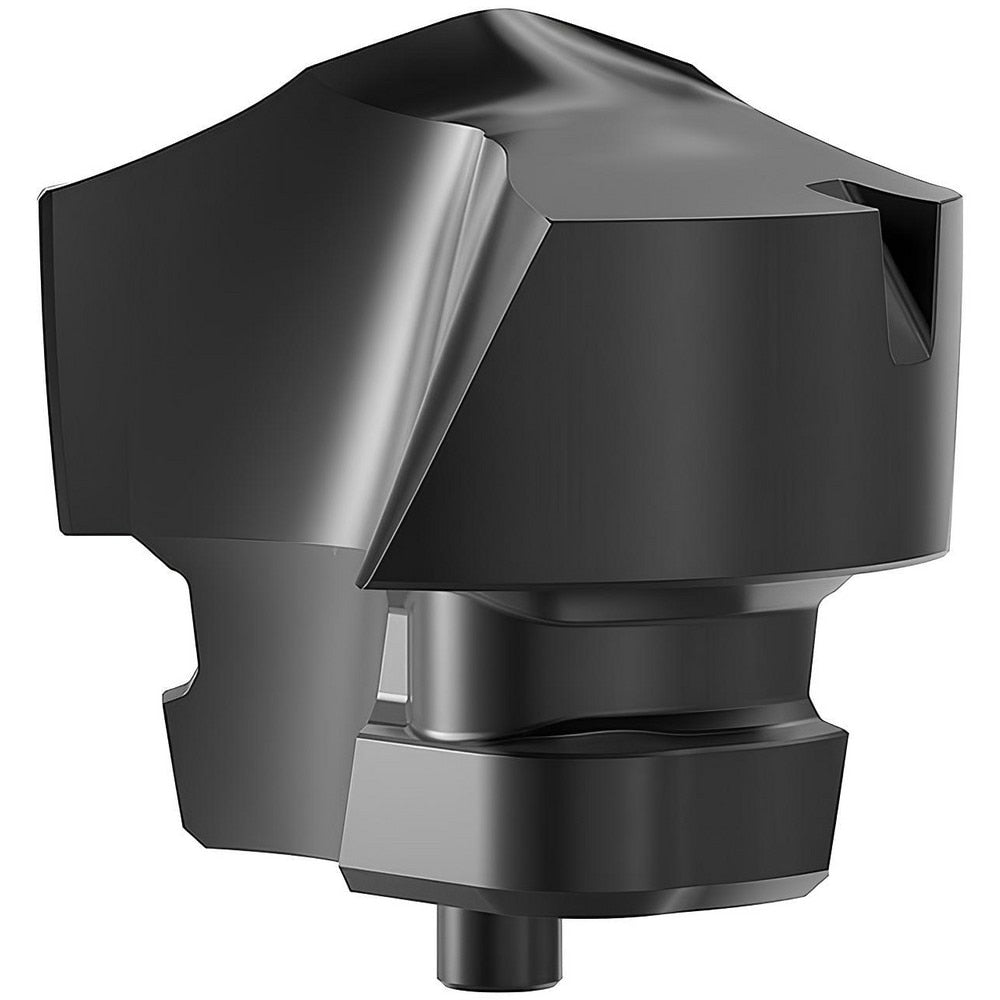

Replaceable Drill Tips: KTFSS25800HPGM KCP15A, 1.0157" Dia, 25.80 mm Dia, 180 deg Point, KCP15A
Item #: 38312724
Brand: Kennametal
Model #: 6388783
Product Specifications
| Cutting Diameter (Decimal Inch) | 1.0157 |
| Cutting Diameter (mm) | 25.80 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | KCP15A |
| Material Grade | Fine Grain |
| Series | KTFSS |
| Coating Process | PVD |
| Insert Geometry | HPG |
| Insert Seat Size | ZD |
| Functional Length (Decimal Inch) | 0.5075 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Height (mm) | 18.00 |
| Overall Length/Projection (Decimal Inch) | 0.7217 |
| Drill Point Angle | 180 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | KTFSS25800HPGM |
| Coolant Through | No |
| Flute Length (mm) | 13.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | KTFSS |
| UNSPSC Code | 23242105 |
| Applications | Drilling; ToolDimensions:2flute/2margin/nocool; 100160772; Drilling:InclinedExit; Drilling:StackedPlates |
| Coating/Finish | AlTiN |
| Included Angle Degree | 180 |
| Number Of Flutes | 2 |
