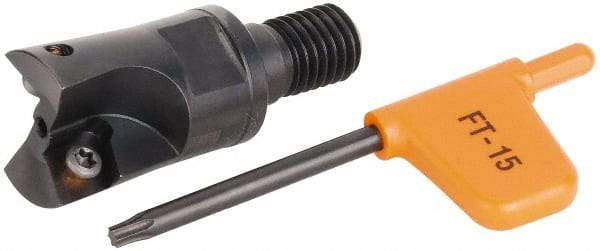

Kennametal - 0.9843" Cut Diam, 8mm Max Depth of Cut, 2.2835" OAL, Indexable Square Shoulder Helical End Mill - XD.. 10T3.. Inserts, M12 Modular Connection, Series KMM
Item #: 07994049
Brand: Kennametal
Model #: 1880650
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Modular Connection |
| Modular Connection Size | M12 |
| Overall Length/Projection (Decimal Inch) | 2.2835 |
| Series | KMM |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 25.00 |
| Minimum Cutting Diameter (Decimal Inch) | 0.9843 |
| Head Length (mm) | 36.00 |
| Head Length (Decimal Inch) | 1.4173 |
| Insert Compatibility | XD.. 10T3.. |
| Shank Length (Decimal Inch) | 0.8661 |
| Shank Length (mm) | 22.00 |
