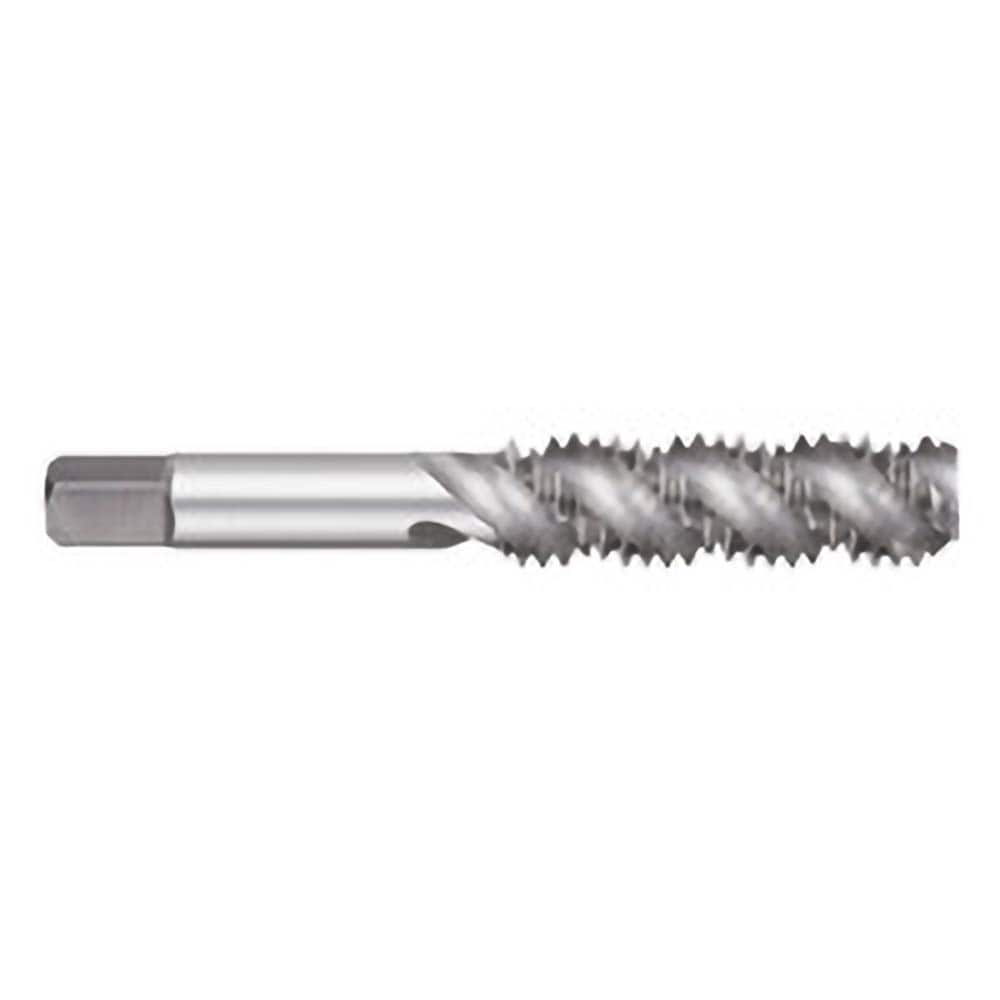

Spiral Flute Tap: #5-44, UNF, 2 Flute, Semi-Bottoming, 2B & 3B Class of Fit, High Speed Steel, Bright/Uncoated 0.625″ Thread Length, 1.9375″ OAL, Right Hand Flute, Right Hand Thread, H3, Series 761
Item #: 07963762
Brand: Titan USA
Model #: TT76111
Product Specifications
| Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Thread Size (Inch - 0 Decimals) | #5-44 |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.6250 |
| Thread Length (Inch) | 5/8 |
| Overall Length (Inch) | 1-15/16 |
| Overall Length (Decimal Inch) | 1.9375 |
| Chamfer | Semi-Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 52 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Inch) | 3/16 |
| Square Size (Decimal Inch) | 0.1100 |
| Square Size (mm) | 2.80 |
| Series | 761 |
| Coolant Through | No |
| Number Of Flutes | 2 |
| Class Of Fit | 2B; 3B |
