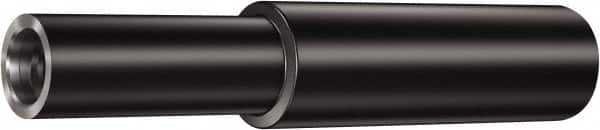

Sandvik Coromant - Coromant EH 5/8" Straight Shank Milling Tip Insert Holder & Shank - 1" Projection, 0.663" Neck Diam, E16 Neck Thread, 15.4mm Nose Diam, 4" OAL, Steel AExx-Axx..SS Tool Holder
Item #: 07785843
Brand: Sandvik Coromant
Model #: 5721515
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Coromant EH |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.625 |
| Projection (Inch) | 1 |
| Projection (Decimal Inch) | 1.0000 |
| Neck Diameter (Decimal Inch) | 0.6063 |
| Neck Thread Size | E16 |
| Nose Diameter (mm) | 15.40 |
| Nose Diameter (Decimal Inch) | 0.6063 |
| Toolholder Material | Steel |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 1.0000 |
| Effective Length (mm) | 25.40 |
| Maximum Diameter (mm) | 15.40 |
| Maximum Diameter (Decimal Inch) | 0.6063 |
| Shank Material | Steel |
| Shank Shape | Round |
| Thread Size Connection to Tip | E16 |
| Toolholder Style | AExx-Axx..SS |
