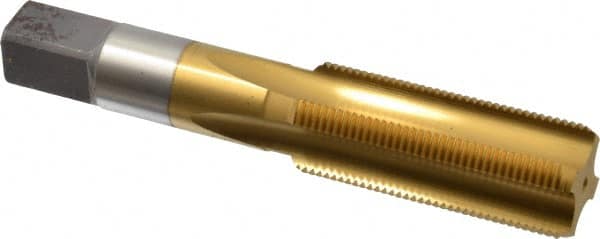

Hertel - M22x1.50 Metric Fine 4 Flute TiN Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 4-11/16" OAL, 2-7/32" Thread Length, D6 Limit, Oversize
Item #: 07685712
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M22x1.50 |
| Thread Limit | D6 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Fine |
| Overall Length (Inch) | 4-11/16 |
| Oversize | No |
| Thread Length (Inch) | 2-7/32 |
| Shank Diameter (Decimal Inch) | 0.6970 |
| Square Length (Inch) | 3/4 |
| Square Size (Decimal Inch) | 0.5230 |
