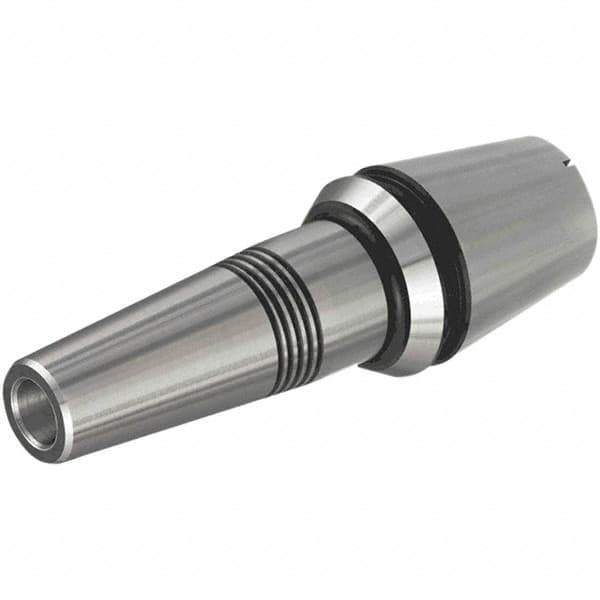

Iscar - 5mm Hole Diam, ER20 Taper Shank Shrink Fit Tool Holder & Adapter - 60mm Projection, 10mm Nose Diam, 21mm Clamping Depth, Through Coolant
Item #: 07639990
Brand: Iscar
Model #: 4500767
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | ER20 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Hole Diameter (mm) | 5.00 |
| Projection (mm) | 60.00 |
| Projection (Decimal Inch) | 2.3622 |
| Nose Diameter (mm) | 10.00 |
| Nose Diameter (Decimal Inch) | 0.3937 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 21.00 |
| Clamping Depth (Decimal Inch) | 0.8268 |
