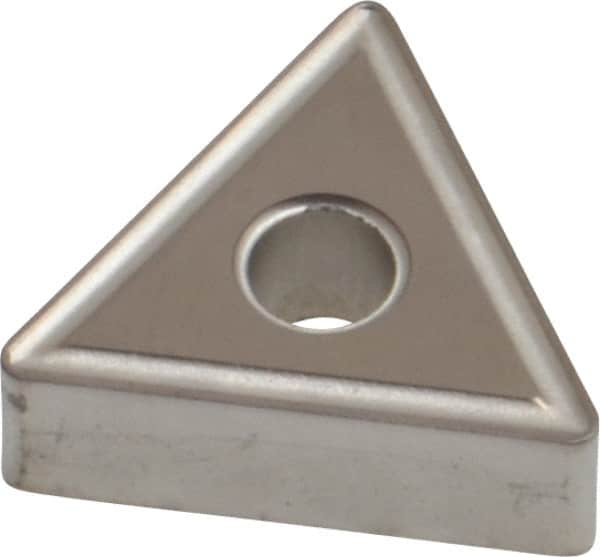

Hertel - TNMG332 Grade HT115CR Cermet Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 07577349
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 332 |
| Material | Cermet |
| Length (mm) | 16.00 |
| Length (Decimal Inch) | 0.6299 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | HT115CR |
| Coating | Uncoated |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Rake | Negative |
| Relief Angle | 0 |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Shape | Triangle |
