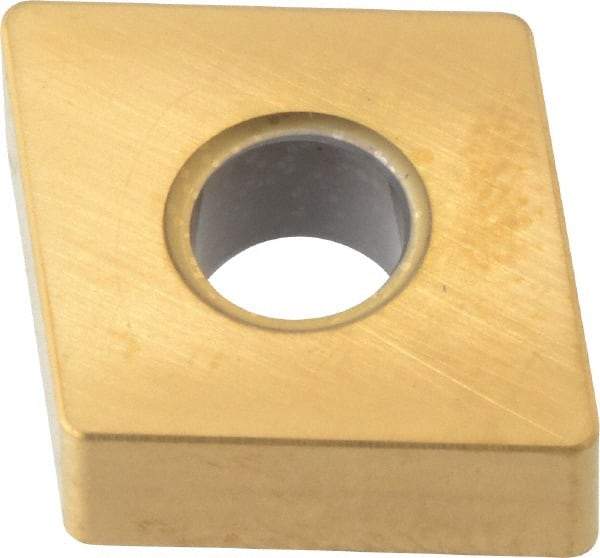

Hertel - CNMA432 T00625 Grade HP610CA Ceramic Turning Insert - TiN Finish, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 07576689
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | CNMA |
| Insert Size | 432 |
| Material | Ceramic |
| Length (Decimal Inch) | 0.4720 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | HP610CA |
| Coating | TiN |
| Chip Breaker | T00625 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Shape | Diamond |
