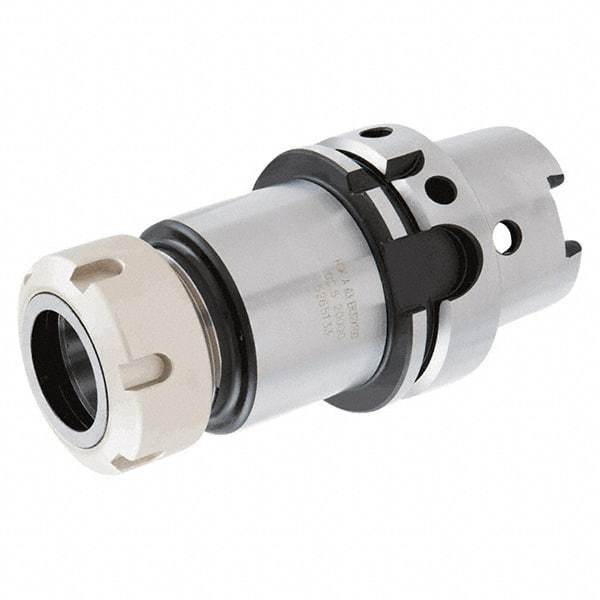

Iscar - 1mm to 16mm Capacity, 100mm Projection, HSK63A Hollow Taper, ER25 Collet Chuck - Through-Spindle
Item #: 07548423
Brand: Iscar
Model #: 4561020
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Hollow Taper |
| Taper Size | HSK63A |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 16.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Nose Diameter (mm) | 42.00 |
| Nose Diameter (Decimal Inch) | 1.6535 |
| PSC Code | 5136 |
| Balanced to (RPM) | 20000 |
| Coolant Type | Through-Spindle |
