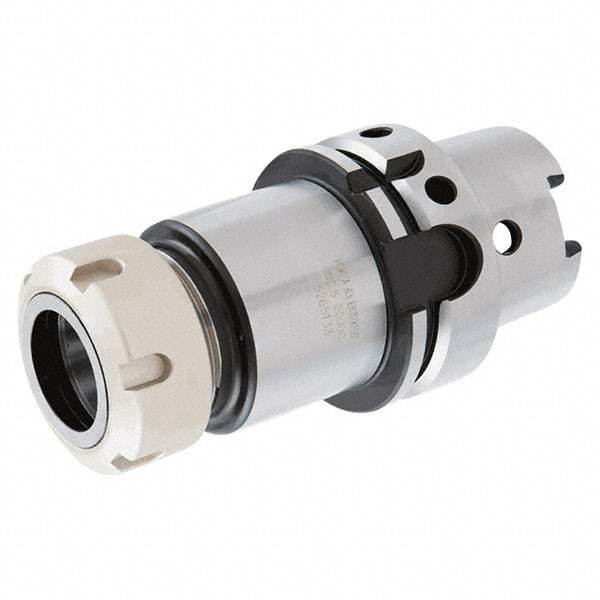

Iscar - 0.5mm to 10mm Capacity, 160mm Projection, HSK63A Hollow Taper, ER16 Collet Chuck - Through-Spindle
Item #: 07548381
Brand: Iscar
Model #: 4561011
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Hollow Taper |
| Taper Size | HSK63A |
| Projection (mm) | 160.00 |
| Projection (Decimal Inch) | 6.2992 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Nose Diameter (mm) | 22.00 |
| Nose Diameter (Decimal Inch) | 0.8661 |
| PSC Code | 5136 |
| Balanced to (RPM) | 12000 |
| Coolant Type | Through-Spindle |
